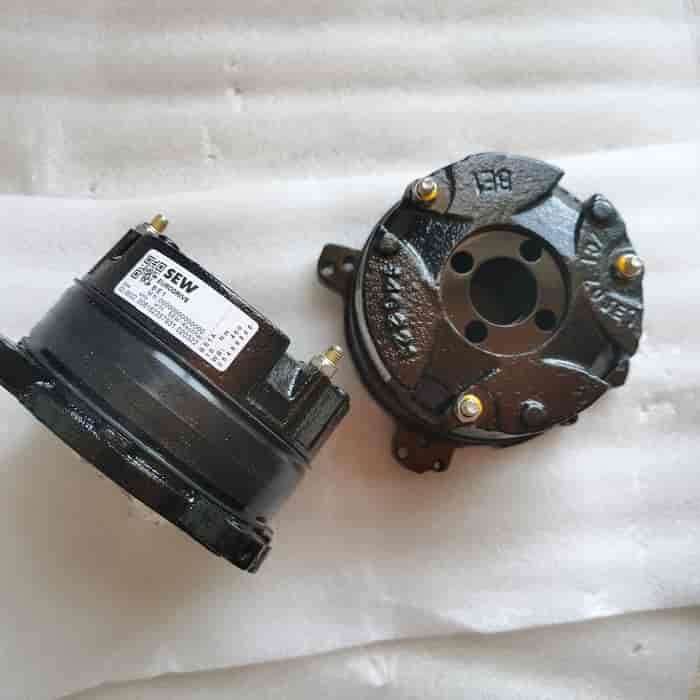

05489806 SEW EURODRIVE Brake BE1A 10Nm 400AC

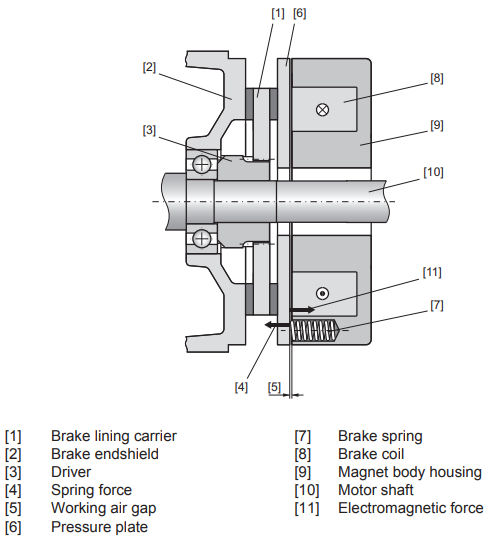

SEW EURODRIVE BE.. brakes are DC-operated electromagnetic disk brakes. The advantages are very short and robust. Furthermore, they are designed to be especially low in noise, especially suited for environments sensitive to noise. The brake coil can be adapted to different connection voltages. It is powered via a brake control which is either placed in the terminal box of the motor or in the control cabinet.





Brake type	MBmax Nm	Reduced braking torques MBred Nm					Winsp 106 J	t1 10-3 s		t2 10-3 s		PB W
								BG	BGE	t2II	t2I
BMG02	1.2	0.8					15	28	10	100	25	15
BR03	3.2	2.4	1.6	0.8			200	25	3	30	26	200
BE05	5.0	3.5	2.5	1.8	–	–	120	34	15	10	42	32
BE1	10	7.0	5.0	–	–	–	120	55	10	12	76	32
BE2	20	14	10	7.0	5.0	–	180	73	17	10	68	43
BE5	55	40	28	20	14	–	390	–	37	10	70	49
BE11	110	80	55	40	20	–	640	–	41	15	82	76
BE20	200	150	110	80	55	40	1000	–	57	20	88	100
BE30	300	200	150	100	75	–	1,500	–	60	16	80	130
BE32	600	500	400	300	200	150	1,500	–	60	16	80	130
BE60	600	500	400	300	200		2500		90	25	120	195
BE62	1200	1000	800	600	400		2500		90	25	120	195
BE120	1000	800	600	400	–	–	390	–	120	40	130	250
BE122	2000	1600	1200	800	–	–	300	–	120	40	130	250
MBmax = maximum braking torque MBred = reduced braking torque Winsp = braking work until maintenance t1 = response time t2I = brake application time for cut-off in the AC circuit t2II = brake application time for cut-off in the DC and AC circuits PB = braking power

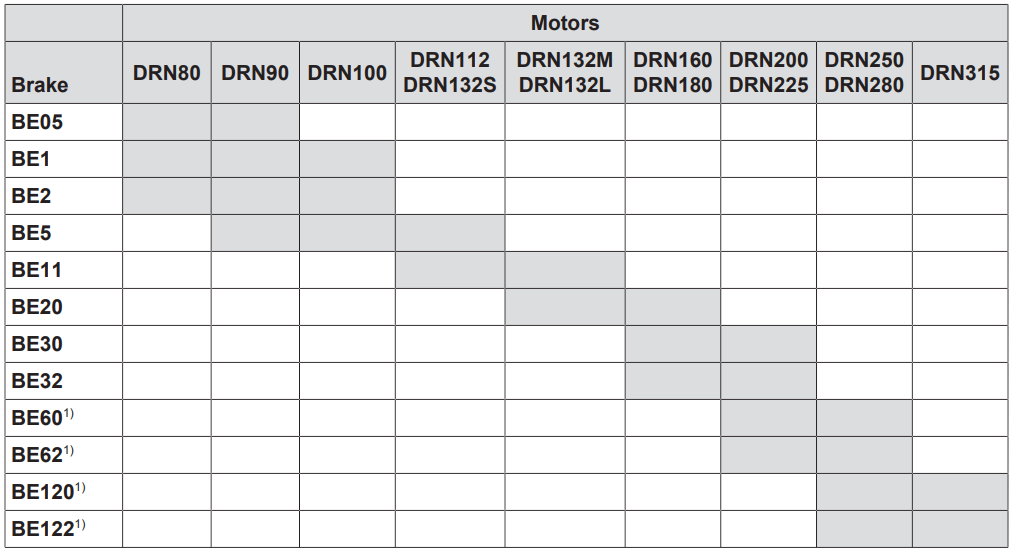

4-pole DRN.. motors/brakemotors for 400 V, 50 Hz.IE3

BE1——DRN 80M 4

BE2——DRN 90S 4 ; DRN 90L 4

BE5——DRN 100LS 4 ; DRN 100L4

BE11——DRN 112M 4 ; DRN 132S 4 ; DRN 132M 4

BE20——DRN 132L4 ; DRN 160M 4 ; DRN 160L4

BE30——DRN 180M 4 ; DRN 180L4

BE32——DRN 200L4 ; DRN 225S 4 ; DRN 225M 4

BE62——DRN 250M 4 ; DRN 280S 4 ; DRN 280M 4

BE122——DRN 315S 4 ; DRN 315M 4 ; DRN 315L 4 ; DRN 315H 4
