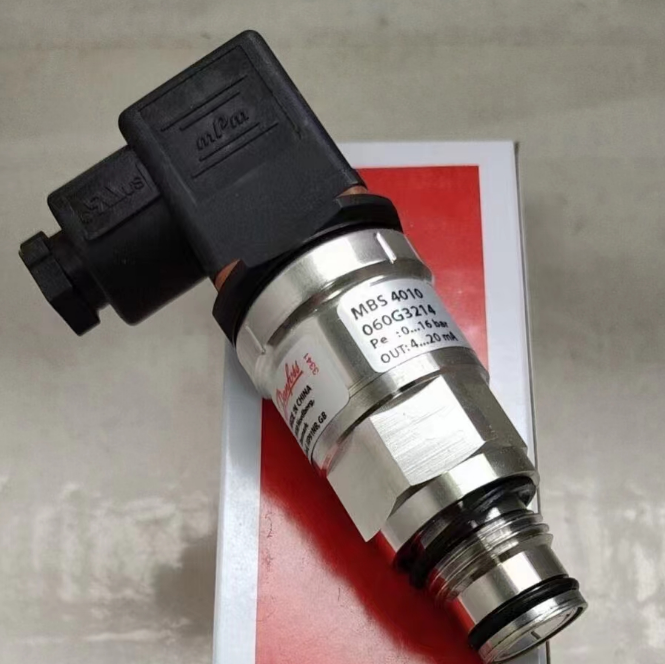

060G3214 DANFOSS MBS4010 -2211-A1CB12-2 Pressure Transmitter
Pressure reference: Gauge (relative), Output signal: Current, Electrical connection: Angular connector, Pressure connection type: G, Pressure connection size: 1/2, Specification key: MBS 4010-2211-A1CB12-2
| Output signal | Current |
| Output signal [mA] [max] | 20 mA |
| Output signal [mA] [min] | 4 mA |
| Overload pressure max. [bar] | 50 bar |
| Overload pressure max. [kPa] | 5000 KPa |
| Packing format | Multi pack |
| Pressure connection HEX [mm] | 27 mm |
| Pressure connection size | 1/2 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range [bar] [max] | 16 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure range [kPa] [max] | 1600 KPa |
| Pressure range [kPa] [min] | 0 KPa |
| Pressure range [psi] [max] | 232.06 psi |
| Pressure range [psi] [min] | 0 psi |
| Pressure reference | Gauge (relative) |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
