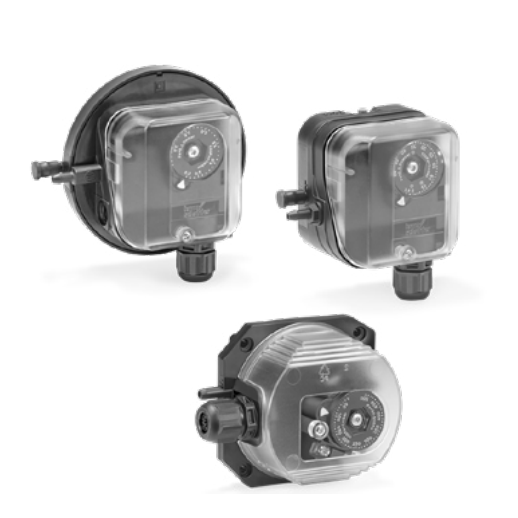

C911-P Honeywell Kromschroder Pressure Switch for Gas and Air
- The C911-P monitors gas or air pressure in a pipeline and activates switch contacts according to the pressure set point. The pressure set point is selected using a dial, visible beneath clear plastic.
- The C911-P can be used alone or integrated into a gas safety system.
- When monitoring differential pressure, use with air only.
- Please note, C911-P is rated for use with 24V – 250V AC, or 24V – 48V DC.
- Please review the technical documentation for specification details.

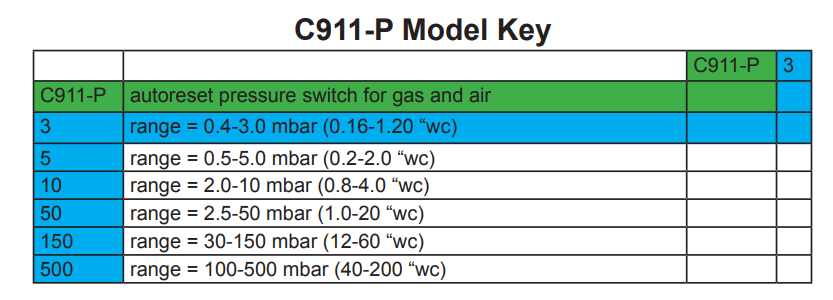

Model | Pressure Range |
C911-P3 | 0.16 – 1.2 WC |
C911-P5 | 0.2-2 WC |
C911-P10 | 0.8-4 WC |
C911-P50 | 2-20 WC |
C911-P150 | 12 -60 WC |
C911-P500 | 40-200 WC |
