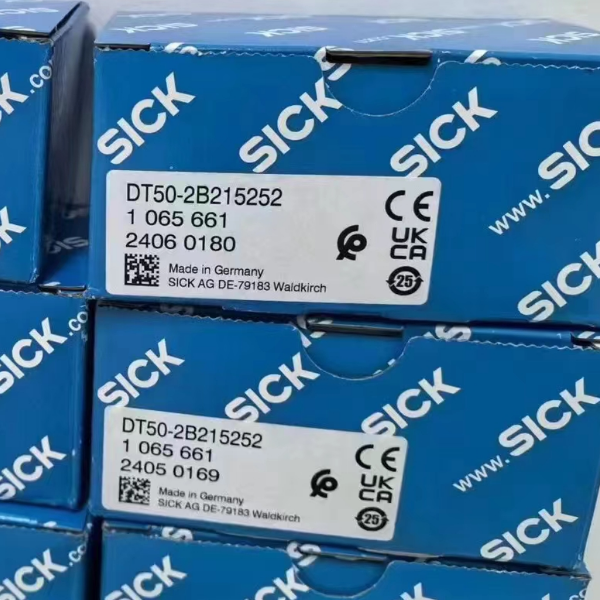

DT50 Sick DT50-2B215252 1065661 Laser Distance Sensor
| Supply voltage Vs | DC 10 V … 30 V 1) 2) |
| Ripple | ≤ 5 Vpp 3) |
| Power consumption | ≤ 1.7 W 4) |
| Initialization time | ≤ 300 ms |
| Warm-up time | ≤ 15 min |
| Housing material | Metal (zinc diecast) |
| Window material | Plastic (PMMA) |
| Connection type | Male connector, M12, 5-pin |
| Indication | 3 x LED, LC display |
| Weight | 235 g |
| Dimensions (W x H x D) | 36.2 mm x 63 mm x 58.6 mm |
| Enclosure rating | IP65
IP67 |
| Protection class | III |
1) Limit values, reverse-polarity protected, operation in short-circuit protected network: max. 8 A.
2) When using IO-Link output Vs> 18 V. When using analog output Vs> 13 V.
3) May not fall short of or exceed VStolerances.
4) Without load, at ≥ 0 °C.
