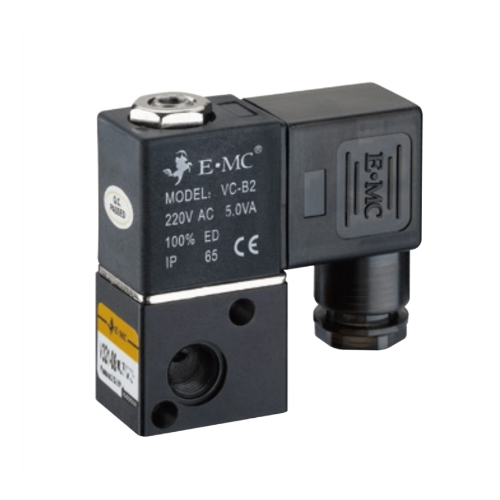

EMC V321-M5 Standard/Low Power Solenoid Valve
Specifications
| Model No. | NM231-M5 | NM231-06 | NPM231-06 | V321-M5 | V321-06 | VP321-06 | |
| Working medium | Clean air (After 40 um filteration) | ||||||
| Acting type | Direct acting | ||||||
| Orifice (mm) | 1.2 | ||||||
| Port size | M5 | G 1/8 | M5 | G 1/8 | |||
| Lubrication | Not required | ||||||
| Working pressure(MPa) | 0~0.8 | ||||||
| Guaranteed pressure (MPa) | 1.2 | ||||||
| Working temperature（℃) | -5~60 | ||||||
| Voltage range | -15%-+10% | ||||||
| Power consumption | DC24V:D.7W AC220V:0.9VA AC110V:1.4VA | AC:4VA DC:3W | AC:7VA DC:6.5W | ||||
| Insulation class | Class F | ||||||
| Protective class | lP65 (DIN40050) | ||||||
| Max.acting frequency | 10 cycles/s | ||||||
| Seal material | NBR | ||||||
| Activate time | Below 0.05 Sec. | ||||||
| Weight(g) | 141 | 138 | 141 | 138 | |||
