Features & functions

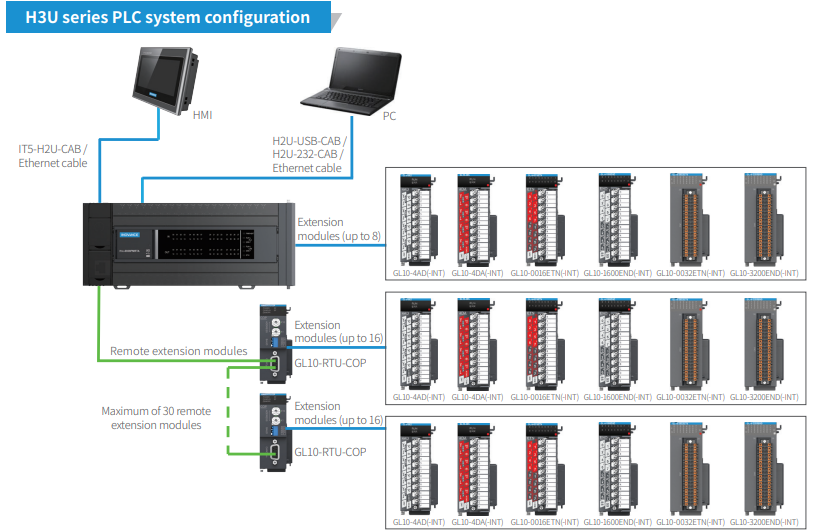

- All in one CPU and power supply supporting local and remote I/O
- Basic instruction: 100 ns/instruction
- Program capacity: 64 K steps
- Device memory
˙Auxiliary relays 9,216 points
˙Timers 512 points
˙Counters 256 points
˙Data registers 9,552 points
˙File registers 32,768 points - High speed inputs: up to 200 kHz
- High speed outputs: up to 500 kHz*1
- Three axes electronic cam (only available on the high-end motion model)
- Standard motion: two-axes circular and point to point interpolated
- High-end motion: three-axes point to point interpolated and spiral curve*1
- Supports Ethernet (MODBUS-TCP), RS485 (MODBUS-RTU), CANopen, CANlink (Inovance proprietary) communication
- Maximum of 192 digital I/O (local), 24 analog I/O (local), 7,936 digital I/O (remote), 1,488 analog I/O (remote)
- Programming language conforms to IEC 61131-3:
˙Ladder diagram (LD)
˙Instruction list (IL)
˙Sequential function chart (SFC)
H3U-1616MT-XP
H3U-2416MT-XP
H3U-1616MR-XP
H3U-2416MR-XP
H3U-3232MT
H3U-3624MT
H3U-3232MR
H3U-3624MR
H3U-0808PMRTA
H2U-1616MR-XP
H2U-1616MT-XP
H2U-2416MR-XP
H2U-2416MT-XP
H2U-3624MR-XP
H2U-3624MT-XP
H2U-3232MR-XP
H2U-3232MT-XP
H2U-3232MTQ
H2U-3232MTP
