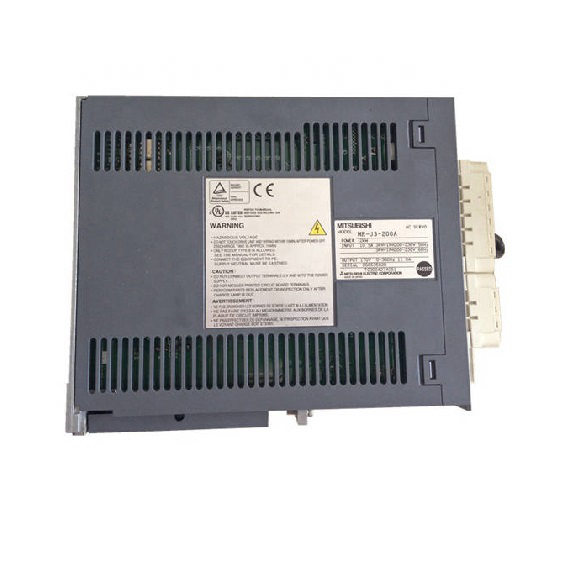

MR-J3-40A Mitsubishi Electric AC Servo MELSERVO
●Main circuit power input Allowable voltage fluctuation
, MR-J3-10A, MR-J3-20A, MR-J3-40A, MR-J3-60A, MR-J3-70A: Single-phase AC200~240V products (MR-J3-□A-U004) are also available as special items. The allowable voltage fluctuation of MR-J3-□A-U004 is single-phase AC170~264V.
●Interface power supply
: 0.3A is the value when all input/output signals are used. The current carrying capacity can be reduced depending on the number of inputs and outputs used by the customer. For details, refer to “MR-J3-□A Servo Amplifier Technical Data Collection”.
● Position control mode Maximum input pulse frequency
4Mpps compatible product (MR-J3-□A(1)-KE) can also be specially supported. For 4Mpps compatible products of HF-JP11K1M and HF-JP15K1M dedicated servo amplifiers, please contact our sales representative.
●Position control mode If torque limiting
high-resolution analog speed command, or analog torque command is required, the MR-J3-□A(1)-RJ040+ extended IO unit MR-D01 can be used.
● Environmental conditions Ambient temperature
MR-J3-350A or less, the amplifier can be installed in close contact. However, when mounting the amplifier in close contact, the ambient temperature should be set to 0~45°C, or the effective load factor should be 75% or less.
